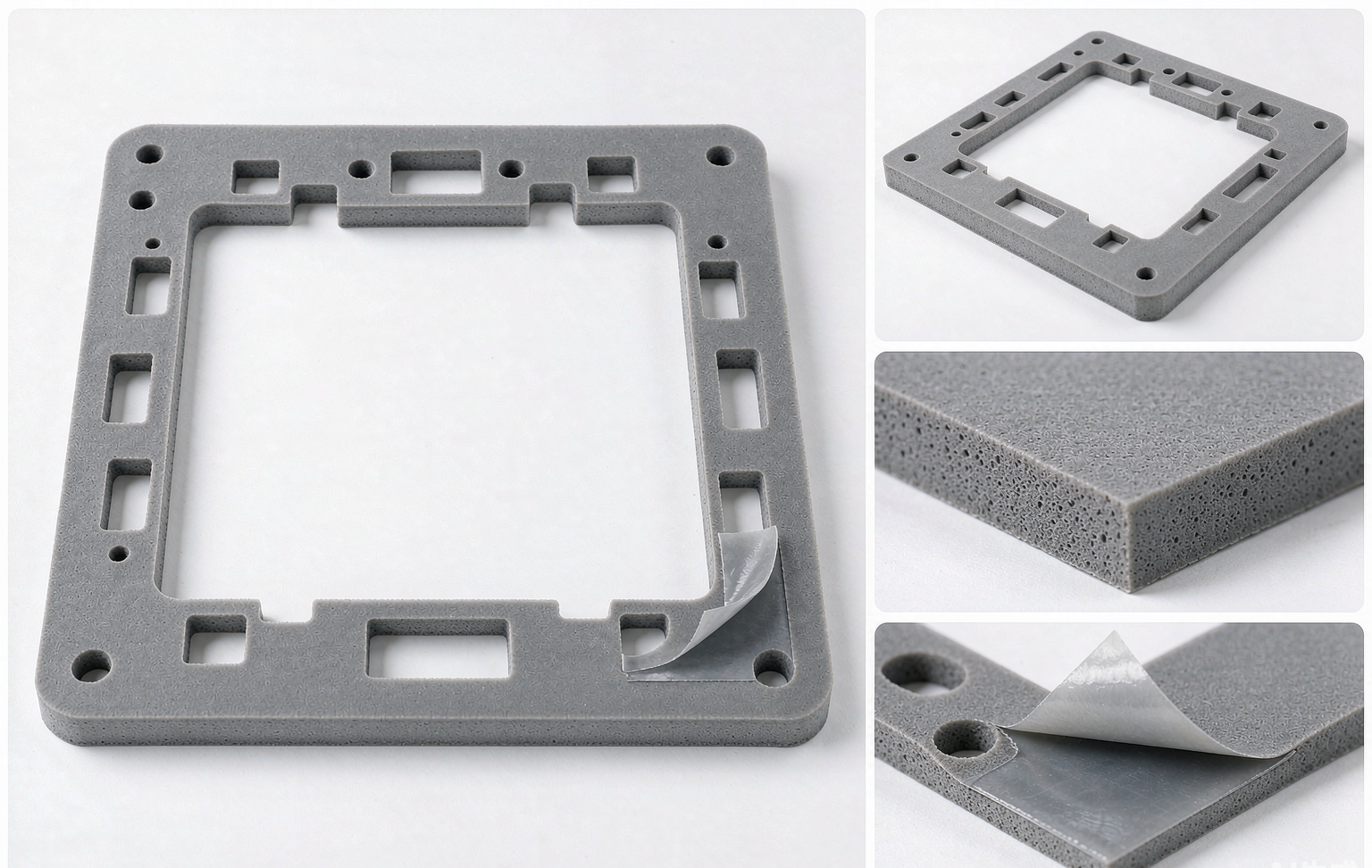

Base Station Gaskets
Outdoor enclosure gaskets validated for IP68, UV, ozone and 20-year weather exposure.
Application Overview
A base-station enclosure gasket cannot be serviced — it must seal for decades against UV, ozone, rain and 70 °C cabinet temperatures. We produce die-cut, molded and co-extruded gasket frames in ozone-resistant silicone, with corner-molded joints that remove the weak point of glued corners. Compression-load curves are provided to support enclosure design.
Technical Standards
- ✓IEC 60529 IP68 ingress protection validated in customer enclosures
- ✓Telcordia GR-487-style outdoor hardware environment compatibility
- ✓UV / ozone aging per ASTM D1149 and accelerated weathering data
- ✓Service range -50 °C to +150 °C; 20-year design life
Manufacturing Process
Frames are die-cut flat, then corner-molded or splice-vulcanized into continuous perimeter gaskets.
- Corner-molded joints eliminate glued-corner failure mode
- Co-extruded soft-lip / firm-base profiles optimize load vs. sealing
- Adhesive backing or clip-in feature options for fast assembly
- Compression force-deflection curves issued for enclosure design
Quality Inspection
- 🔍100% visual inspection (flash, short-shot, contamination) before packing
- 🔍Dimensional verification against approved drawing; FAI report on first shipment and after any tooling change
- 🔍Hardness per ASTM D2240 (Shore A) on every batch
- 🔍Lot traceability: material batch, cure records and operator logged for every carton
- 🔍Compression force-deflection sampling per lot
- 🔍Corner-joint strength sampling (≥80% of base material)
- 🔍Ozone / UV aging on material qualification lots
- 🔍Dimensional FAI including corner alignment
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
