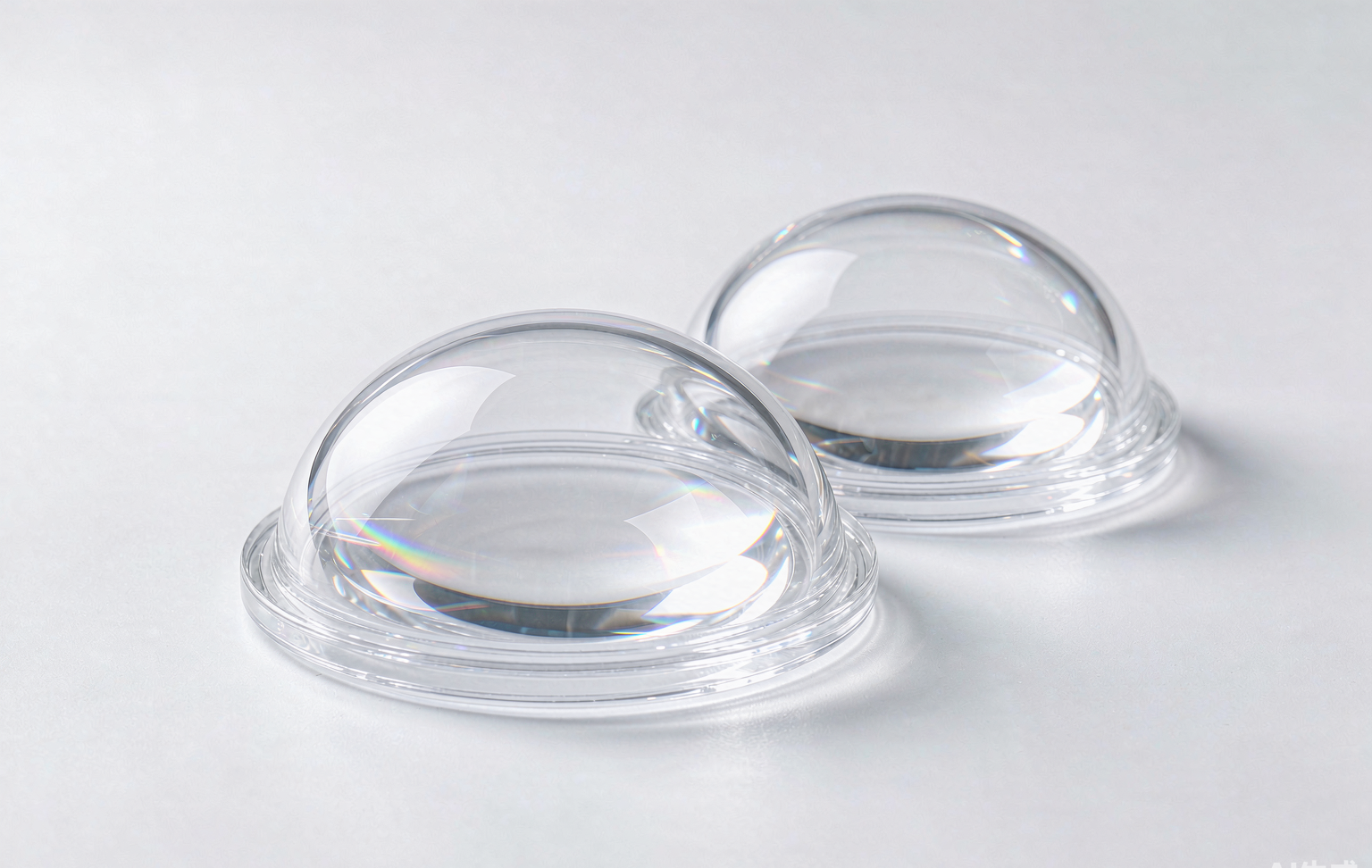

Optical LSR Lenses
Optically clear LSR lenses and light guides with >90% transmittance and yellowing resistance.
Application Overview
Optical LSR combines glass-like clarity with the design freedom of injection molding β ideal for LED lenses, sensor windows and light guides. We mold optical-grade LSR in cleanroom tools with mirror cavities, achieving transmittance above 90% across the visible spectrum and stable performance from -40 Β°C to 150 Β°C without yellowing.
Technical Standards
- βTransmittance > 90% (visible spectrum) material data available
- βHaze < 2% for lens-grade parts;ιΎεΊ¦ verification per part family
- βUL 94 V-0 and -50 Β°C to +150 Β°C service range
- βRoHS / REACH compliant; automotive-interior fogging grades
Manufacturing Process
Lenses are LSR injection molded in Class-100,000 cleanroom conditions with high-polish optical cores.
- No release agents β cleanroom demold automation preserves optical surfaces
- Particle-free handling and individual PE bagging
- Pigment-free base resin with optional light-diffusing dosing
- Gate design optimized to keep flow marks out of the optical zone
Quality Inspection
- π100% visual inspection (flash, short-shot, contamination) before packing
- πDimensional verification against approved drawing; FAI report on first shipment and after any tooling change
- πHardness per ASTM D2240 (Shore A) on every batch
- πLot traceability: material batch, cure records and operator logged for every carton
- πTransmittance / haze sampling measurement per lot
- πOptical-zone visual audit (flow marks, black specks) per limit samples
- πDimensional verification of optical surfaces and flanges
- πYellowing index after thermal-aging sampling
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
