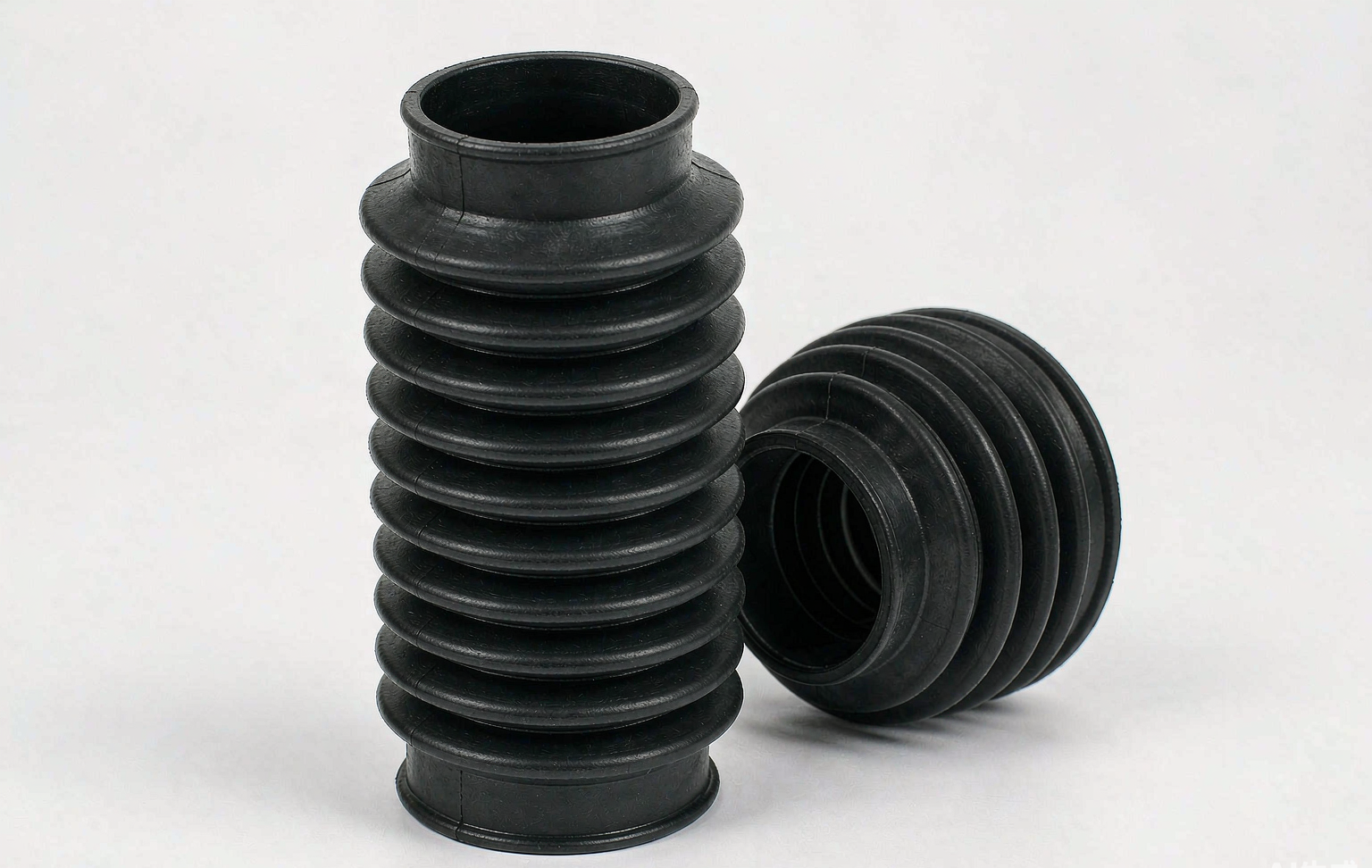

Bellows & Boots
Custom silicone bellows and expansion boots absorbing motion, misalignment and thermal growth.
Application Overview
Bellows absorb axial, lateral and angular movement on pumps, actuators and shafts while keeping dust and moisture out. We mold custom bellows with convolution geometry engineered for your stroke length and cycle life — validated by fatigue testing to millions of strokes. Reinforced and fabric-inserted constructions extend life in severe duty.
Technical Standards
- ✓Custom stroke / cycle-life specification validated by fatigue testing
- ✓Service range -50 °C to +230 °C; steam and ozone resistant
- ✓Fabric reinforcement option for pressure-containing duty
- ✓ASTM D2000 material call-outs supported
Manufacturing Process
Bellows are compression or injection molded with collapsible or stripping cores for deep convolutions.
- Convolution pitch engineered per stroke and bending angle requirement
- Fabric-reinforced builds for pressure duty
- Cuff clamps and flanges co-molded for secure fixing
- Fatigue validation runs (1M+ cycles) before PP approval
Quality Inspection
- 🔍100% visual inspection (flash, short-shot, contamination) before packing
- 🔍Dimensional verification against approved drawing; FAI report on first shipment and after any tooling change
- 🔍Hardness per ASTM D2240 (Shore A) on every batch
- 🔍Lot traceability: material batch, cure records and operator logged for every carton
- 🔍Convolution wall thickness verification on FAI lots
- 🔍Fatigue cycle sampling test on validation and annual lots
- 🔍Leak / pressure test for reinforced pressure builds
- 🔍Hardness per ASTM D2240 per batch
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
