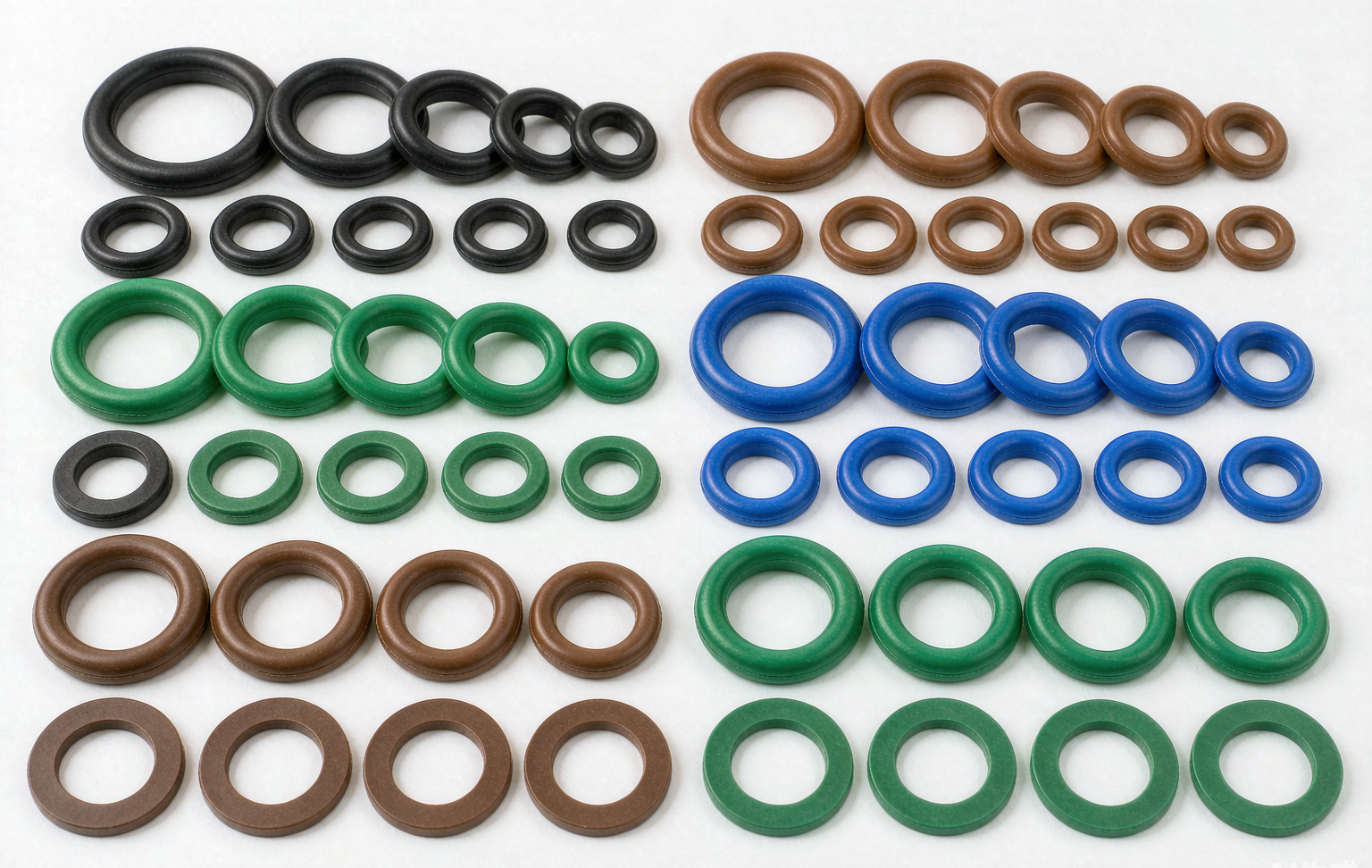

O-Rings & Gaskets
Standard AS568 and custom O-rings plus die-cut gaskets in silicone, FKM and hybrid compounds.
Application Overview
From food-processing lines to high-temperature ovens, we supply O-rings in standard AS568 dash sizes and custom dimensions, plus die-cut gaskets in any 2D shape. Compounds cover platinum-cured food-grade, steam-stable, and high-temperature silicone; FKM and FVMQ are available for fuel and oil service. Splice-vulcanized rings serve large-diameter, low-volume needs economically.
Technical Standards
- ✓AS568 standard dash sizes and ISO 3601 metric sizes stocked as tooling
- ✓FDA 21 CFR 177.2600 / NSF 51 food-contact and LFGB grades
- ✓ASTM D2000 material call-outs supported
- ✓Steam stability to 150 °C saturated steam validated for select compounds
Manufacturing Process
O-rings are compression or injection molded; large diameters are splice-vulcanized from extruded cord.
- Multi-cavity compression tooling for economical standard sizes
- Precision die-cutting (kiss-cut available) for flat gaskets with adhesive backing
- Splice joints vulcanized with matched-cord tooling at ≥80% joint strength
- Custom compounds tuned per media (steam, glycol, CIP chemicals)
Quality Inspection
- 🔍100% visual inspection (flash, short-shot, contamination) before packing
- 🔍Dimensional verification against approved drawing; FAI report on first shipment and after any tooling change
- 🔍Hardness per ASTM D2240 (Shore A) on every batch
- 🔍Lot traceability: material batch, cure records and operator logged for every carton
- 🔍Cross-section and ID/OD verification per lot (hard-gauge / optical)
- 🔍Compression set per ASTM D395 method B
- 🔍Tensile and elongation per ASTM D412
- 🔍Hardness per ASTM D2240 per batch
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
