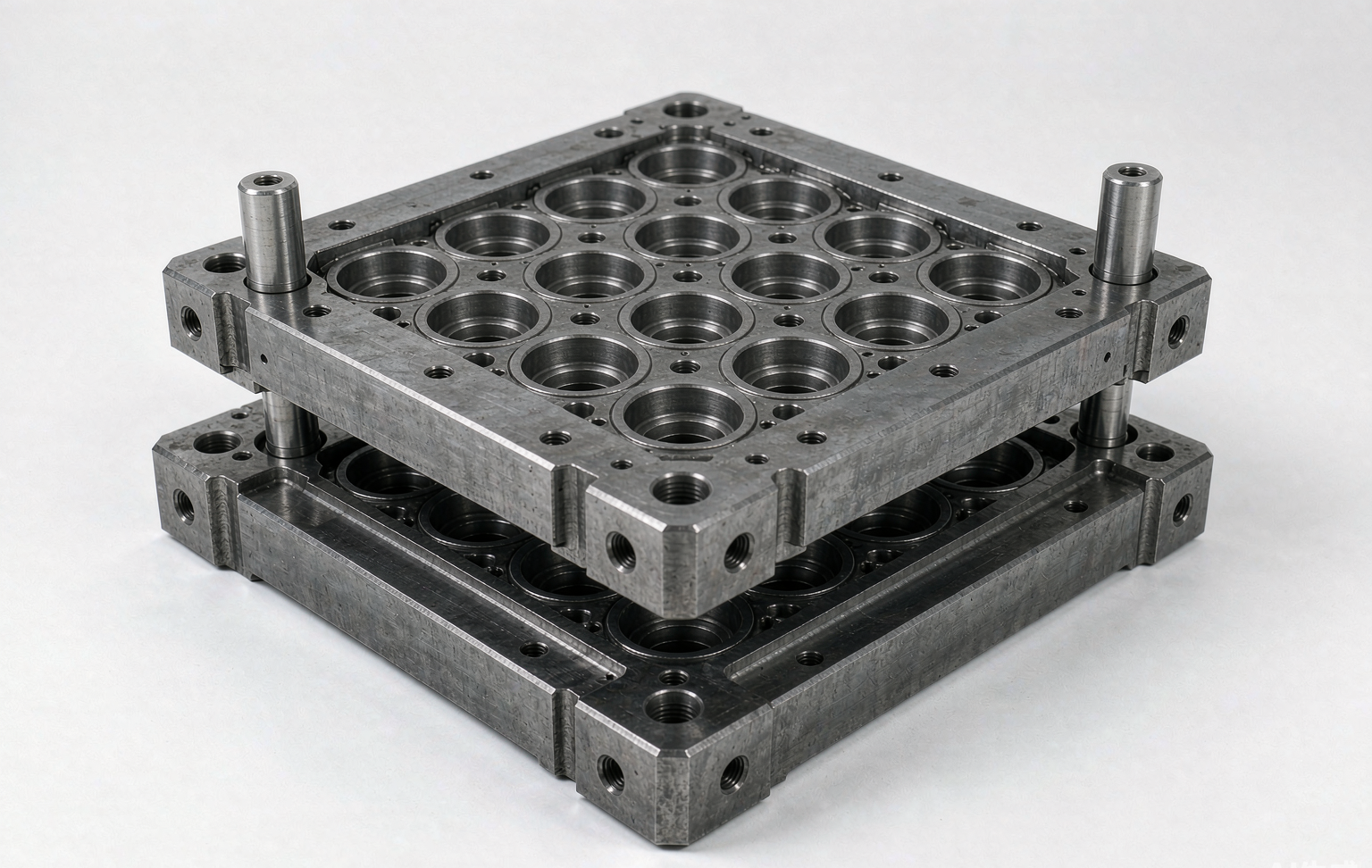

Compression Molds
Multi-cavity compression molds for O-rings, gaskets and bonded parts — economical at any volume.
Application Overview
Compression molding remains the most economical route for solid silicone, especially for large parts and mid-volume O-rings. We build multi-cavity compression molds (up to 200+ cavities for standard O-ring sizes) with balanced filling, quick-change insert systems and vacuum options for critical cosmetic parts.
Technical Standards
- ✓Cavity steel S136 / 1.2344, hardened HRC 48-52; ±0.01 mm cavity accuracy
- ✓Quick-change insert systems for size families
- ✓Vacuum chamber options for porous-fill prevention
- ✓Mold life guarantee: 300k+ shots with maintenance schedule
Manufacturing Process
CAD → CAM → CNC + EDM machining, with trial runs on our in-house compression presses.
- Cavity layout balanced for simultaneous filling and equal cure
- Preform weight calculation delivered with the mold package
- Insert-quick-change designs let one frame serve a size family
- First-article dimensional layout report with approval samples
Quality Inspection
- 🔍CMM cavity dimensional report before qualification
- 🔍Steel hardness (HRC) verification
- 🔍First-article full-layout dimensional report
- 🔍Maintenance logbook and spare-cavity documentation
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
