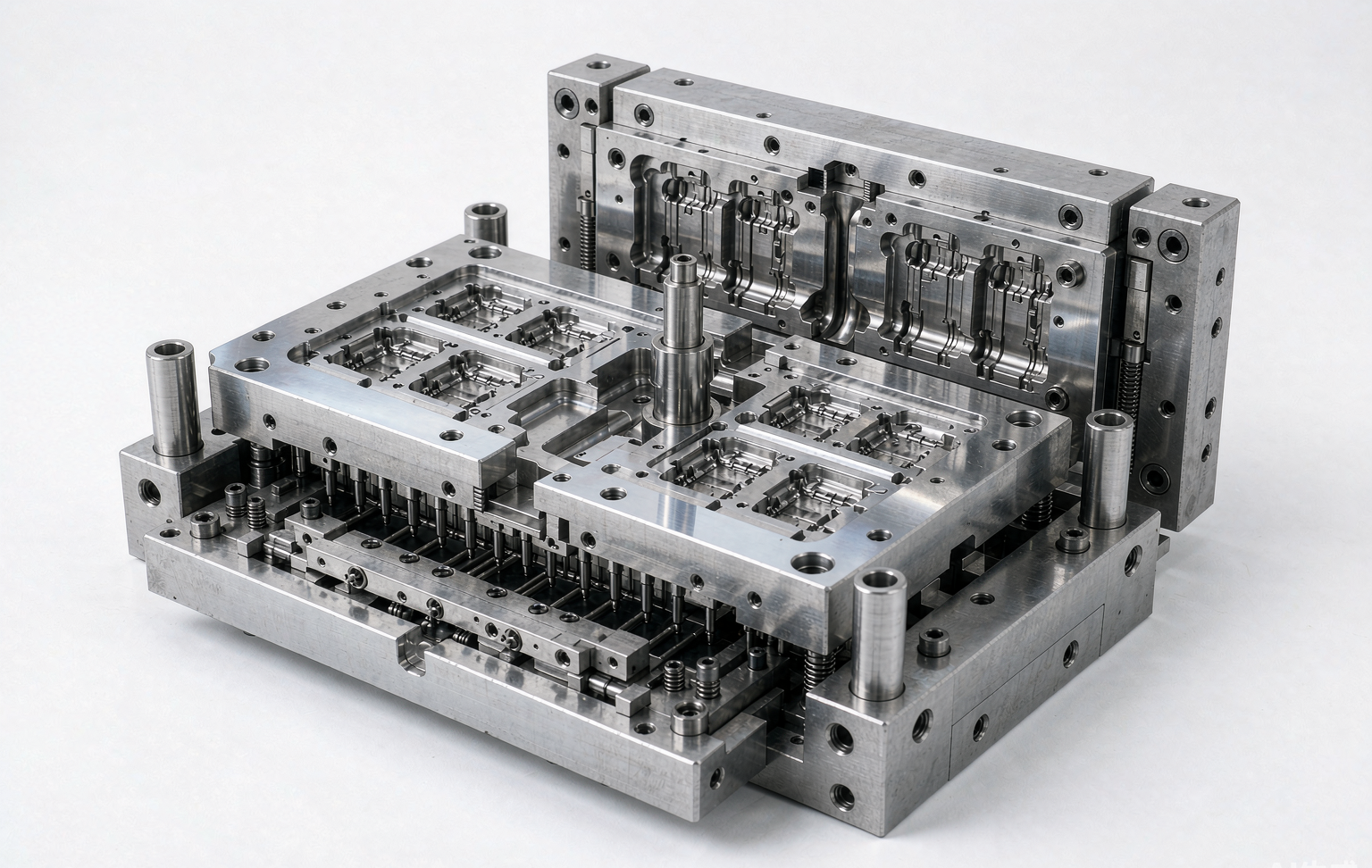

LSR Injection Molds
Flashless LSR molds with cold-deck systems — design to first article in days.
Application Overview
LSR molding lives or dies on tool quality: cold-runner decks, vacuum venting and parting-line precision decide whether you get flashless parts or hours of deburring. We design and CNC-machine LSR injection molds in-house, from 1-cavity prototyping tools to 64-cavity production tools, with DFM feedback built into every quote.
Technical Standards
- ✓Cavity steel: S136 / 1.2344 ESR, hardened to HRC 48-52
- ✓Cavity dimension accuracy ±0.01 mm; GD&T per ISO 1101
- ✓Cold-deck (no runner waste) and vacuum venting as standard options
- ✓Mold life guarantee: 500k+ shots with maintenance schedule
Manufacturing Process
In-house toolroom: CAD (UG/NX) → CAM → CNC machining → trial on our own presses.
- DFM review with the part designer before steel is cut
- 3-5 axis CNC machining plus EDM for crisp internal details
- Cold-deck manifold design eliminates runner scrap and cure waste
- First-article trial on our production presses — you receive parts, not promises
Quality Inspection
- 🔍Cavity dimensional report (CMM) before steel qualification
- 🔍Steel hardness verification (HRC) after heat treatment
- 🔍First-article trial shots with full dimensional layout
- 🔍Shot-count and maintenance logbook delivered with every mold
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
