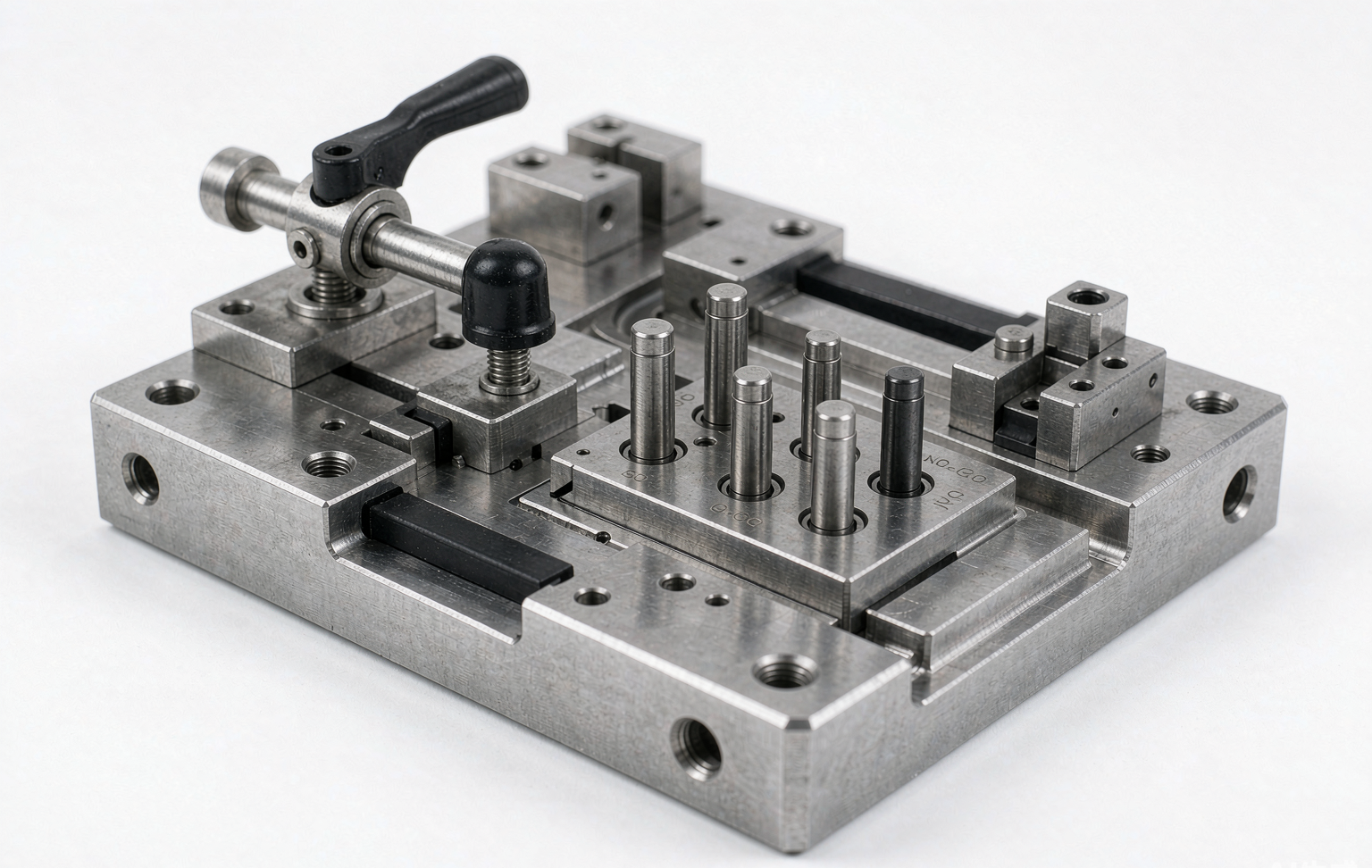

Jigs & Fixtures
Assembly jigs, trimming fixtures and QC gauges that make your line faster and repeatable.
Application Overview
Beyond molds, our toolroom builds the surrounding tooling that production lines need: assembly jigs, deflash fixtures, punching and die-cut tools, QC check gauges and packaging nests. Built from the same 3D data as your parts, they arrive verified against master samples — no iteration on your floor.
Technical Standards
- ✓Machined from customer 3D data; verified against master samples
- ✓Gauge tolerance per 10% of product tolerance (gauge-maker rule)
- ✓Aluminum / steel / engineered plastic construction as duty requires
- ✓CMM verification report delivered with each fixture
Manufacturing Process
Design from part 3D data → CNC machining → verification against master parts.
- Assembly jigs with poka-yoke (error-proof) locating features
- Deflash / trim fixtures matched to part geometry
- Go/No-Go gauges and check fixtures for line QC
- Ergonomic and cycle-time optimization built into design review
Quality Inspection
- 🔍CMM verification report against part 3D data
- 🔍Fit trial on production parts before shipping
- 🔍Gauge calibration certificate for QC fixtures
- 🔍Poka-yoke function verification (wrong part cannot load)
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
