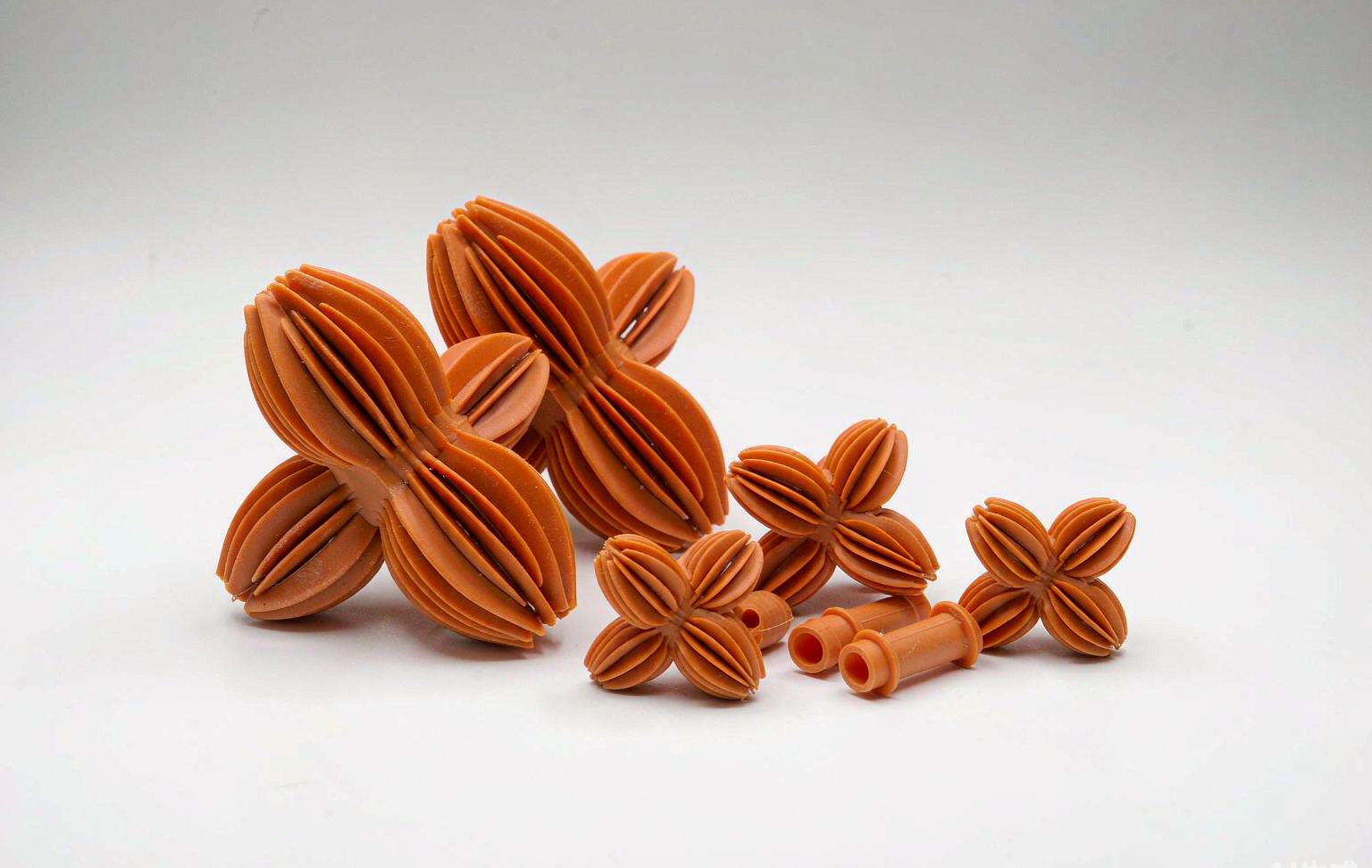

Connector Seals
Wire-seal and interface seals for automotive connectors — insertion force and TIA performance per OEM spec.
Application Overview
Connector seals live in a hostile world: repeated mating cycles, thermal shock, fluid splash and vibration. We mold wire seals, cavity seals and interface gaskets with knife-edge geometries that meet OEM insertion/extraction force windows and TIA (tightness of interface) requirements. Compounds are tuned for low insertion friction without losing long-term seal load.
Technical Standards
- ✓OEM connector-seal specifications (insertion force, TIA) supported
- ✓IATF 16949-aligned manufacturing; PPAP Level 3 documentation on request
- ✓Thermal cycling -40 °C to +125 °C / +150 °C validated
- ✓RoHS / REACH compliant; LV 214-style fluid compatibility tested
Manufacturing Process
Seals are LSR injection or transfer molded in multi-cavity tools with knife-edge release engineering.
- Knife-edge geometry released without tearing through tool temperature and demold automation
- Low-friction, non-blooming compound formulations
- One-piece wire-seal overmolding onto terminal seals where required
- Post-cure and lubricity stabilization for consistent insertion force
Quality Inspection
- 🔍100% visual inspection (flash, short-shot, contamination) before packing
- 🔍Dimensional verification against approved drawing; FAI report on first shipment and after any tooling change
- 🔍Hardness per ASTM D2240 (Shore A) on every batch
- 🔍Lot traceability: material batch, cure records and operator logged for every carton
- 🔍Insertion / extraction force sampling test per lot
- 🔍Knife-edge visual audit (100% on first lots, SPC after PPAP)
- 🔍Thermal-cycling seal integrity sampling
- 🔍Hardness per ASTM D2240 per batch
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
