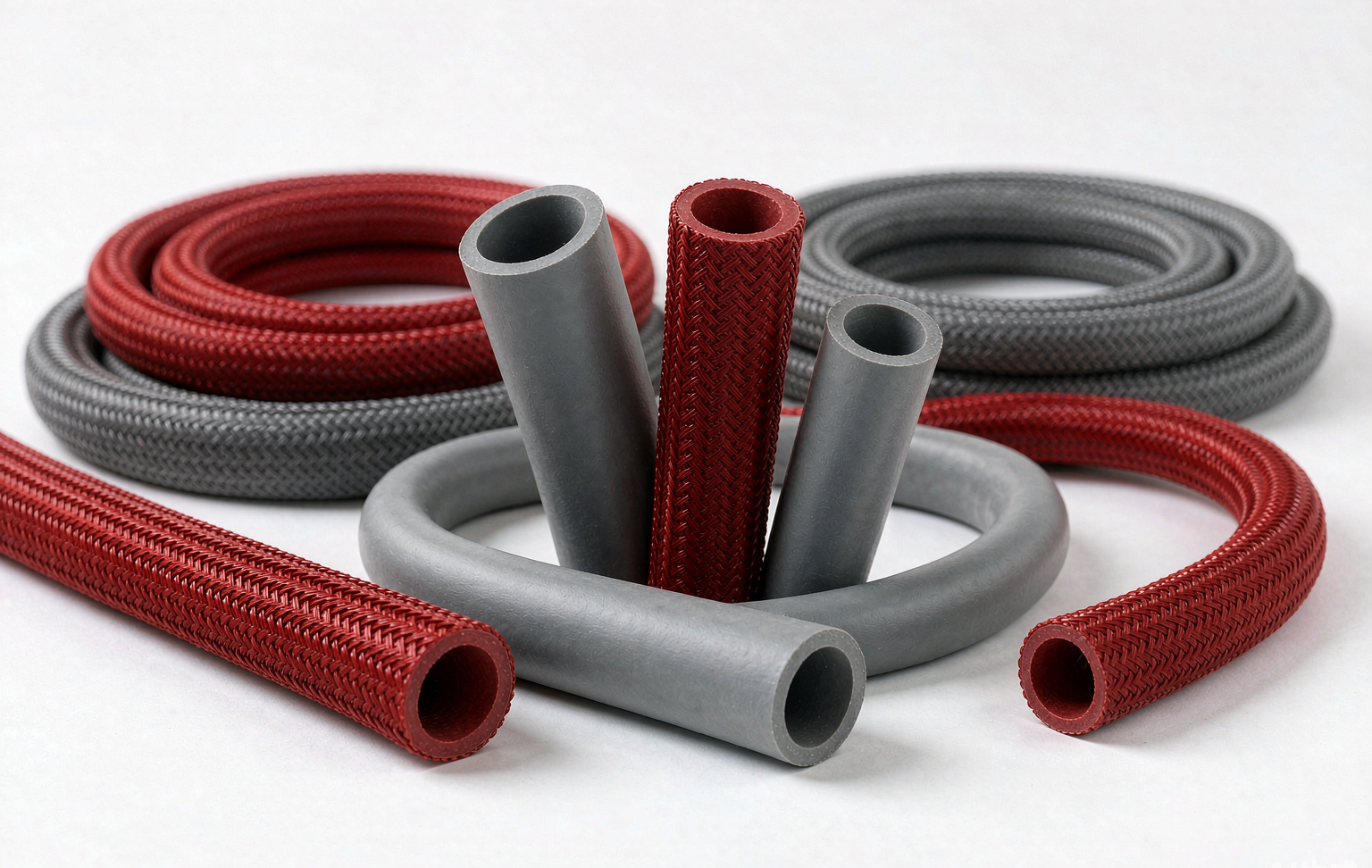

Wire Harness Sleeves
Flame-retardant silicone sleeves and boots protecting harnesses from heat, abrasion and fluid splash.
Application Overview
Engine-bay and EV high-voltage harnesses need sleeves that insulate, shed heat and resist abrasion for 15 years. We extrude and mold silicone sleeves in flame-retardant grades, with expandable, split and custom-boot geometries. EV high-voltage variants use high-track-resistance compounds for safety-critical insulation.
Technical Standards
- ✓UL 94 V-0 flame-retardant grades; high CTI variants for HV insulation
- ✓ISO 6722-1 style automotive cable environment compatibility
- ✓RoHS / REACH compliant
- ✓Service range -50 °C to +200 °C, short-term +230 °C
Manufacturing Process
Straight sleeves are continuous-cured extrusion; boots and transitions are compression or LSR injection molded.
- Platinum or peroxide cure selected per application (odor vs. elongation)
- Expandable braid-reinforced constructions for retrofit installation
- Split sleeves with self-closing geometry for in-vehicle wrapping
- Marking (part number, date) in-line printed or molded
Quality Inspection
- 🔍100% visual inspection (flash, short-shot, contamination) before packing
- 🔍Dimensional verification against approved drawing; FAI report on first shipment and after any tooling change
- 🔍Hardness per ASTM D2240 (Shore A) on every batch
- 🔍Lot traceability: material batch, cure records and operator logged for every carton
- 🔍Dielectric withstand sampling test for HV grades
- 🔍Flame retardance verification per UL 94 on material lots
- 🔍Abrasion resistance sampling per lot
- 🔍ID/OD laser gauging records from extrusion line
After-sales & Support
Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.
- Warranty: 12 months against material and workmanship defects
- Response: engineering reply within 24 hours, 8D report for confirmed quality issues
- Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
- Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
- Recall readiness: full batch traceability enables targeted containment within 48 hours
