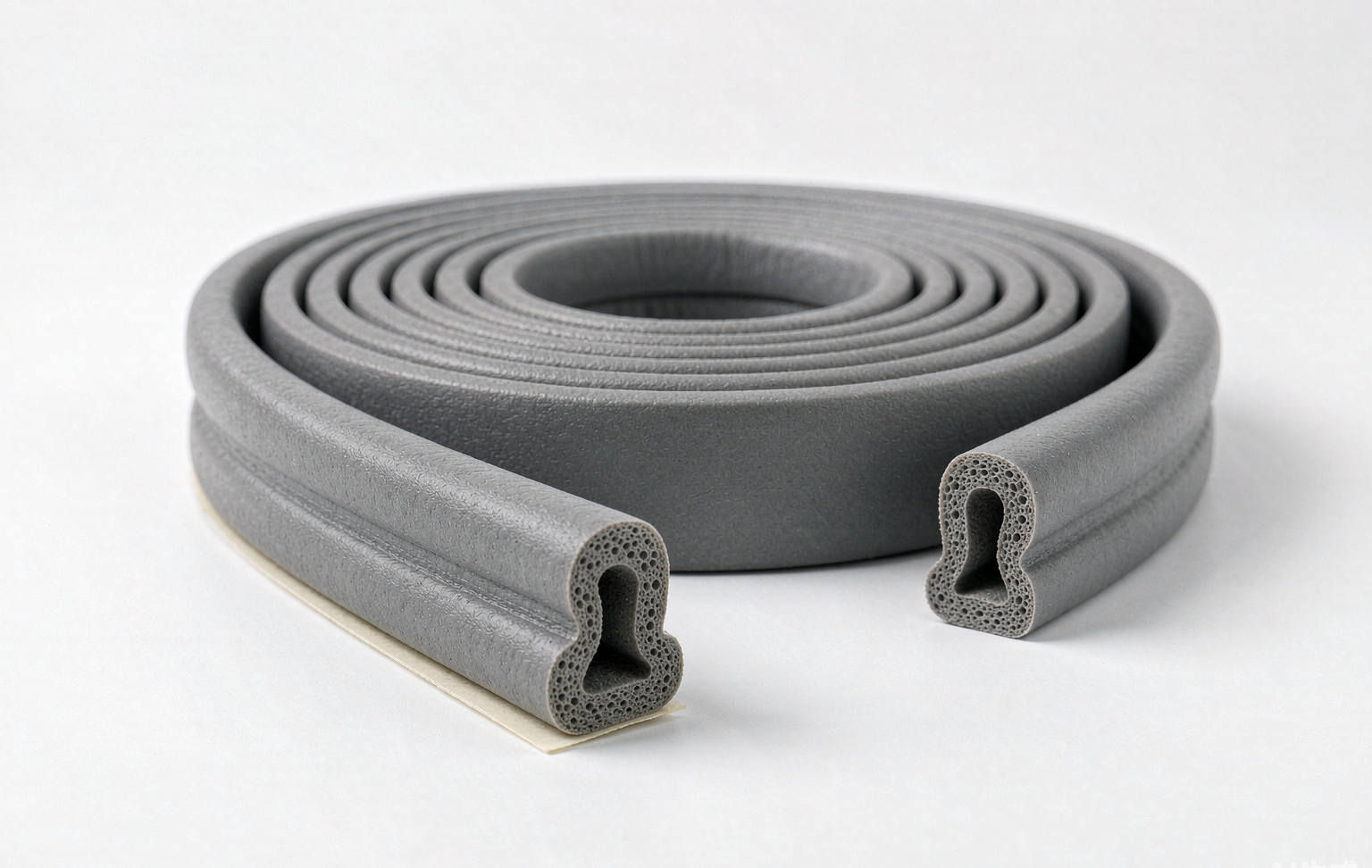

EV Battery Pack Seals

IP67/IP68 pack enclosures sealed with silicone gaskets validated for -40 °C to 150 °C and 10-year service.

Application Overview

Battery pack sealing is a safety function: the gasket must hold IP67/IP68 across thermal cycling, vibration and coolant exposure for the life of the vehicle. We supply die-cut, molded and co-extruded silicone seals with compression-set-optimized compounds, flame-retardant grades (UL 94 V-0) and thermal-interface options. PPAP-style documentation supports OEM validation.

Technical Standards

✓UL 94 V-0 flame-retardant grades available
✓Service validation from -40 °C to +150 °C with thermal cycling data
✓IATF 16949-aligned processes; PPAP Level 3 documentation on request
✓RoHS / REACH compliant; coolant (50/50 glycol) immersion tested

Manufacturing Process

Pack seals are produced by compression molding, die-cutting or co-extrusion depending on geometry and volume.

Low compression-set compounds (<10% at 70 h / 150 °C) maintain gasket load over vehicle life
Flame-retardant and thermally conductive filler options
Splice-vulcanized rings for large perimeter seals — joint strength ≥ 80% of base material
Pressure-sensitive adhesive or mechanical-fixing feature options

Quality Inspection

🔍100% visual inspection (flash, short-shot, contamination) before packing
🔍Dimensional verification against approved drawing; FAI report on first shipment and after any tooling change
🔍Hardness per ASTM D2240 (Shore A) on every batch
🔍Lot traceability: material batch, cure records and operator logged for every carton
🔍Compression set per ASTM D395 method B (70 h at 150 °C)
🔍IP67/IP68 water-ingress validation on customer assemblies (support testing)
🔍Hardness, tensile and elongation per ASTM D412/D2240 per batch
🔍Dimensional FAI including splice-gap measurement on joined rings

After-sales & Support

Every order ships with a Certificate of Conformance, First Article Inspection report and lot traceability records.

Warranty: 12 months against material and workmanship defects
Response: engineering reply within 24 hours, 8D report for confirmed quality issues
Remedy: free replacement or credit for non-conforming batches; expedited re-shipment at our cost
Support: free design-for-manufacturing review, material selection advice and sample policy for evaluation
Recall readiness: full batch traceability enables targeted containment within 48 hours
